Daylight Boxer 800W
Identity No.: L00800BX
Capacity: 800W
Lamp Bulb Voltage: 9.3A / 95V AC
Protective Lens: Ø175mm (6-7/8 in.)
Lamp Type: HMI 800W SE
Color Temp.: 5600K
Lamp Holder: G22
Stirrup: Ø16mm (5/8 in.) Socket
Class / IP Rating: 1 / IP 20
Max. Surface Temp.: 170 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 6 m
Min. Distance to Flammable Object: 0.5 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 2.5 kg
Daylight Boxer 400W
Identity No.: L00400BX
Capacity: 400W
Lamp Bulb Voltage: 6.3A / 70V AC
Protective Lens: Ø130mm (5-1/8 in.)
Lamp Type: HMI 400W SE
Color Temp.: 5600K
Lamp Holder: GZZ9.5
Stirrup: Ø16mm (5/8 in.) Socket
Class / IP Rating: 1 / IP 20
Max. Surface Temp.: 170 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 3 m
Min. Distance to Flammable Object: 0.5 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 1.3 kg
Daylight Boxer 200W
Identity No.: L00200BX
Capacity: 200W
Lamp Bulb Voltage: 3.1A / 70V AC
Protective Lens: Ø112mm (4-3/8 in.)
Lamp Type: HMI 200W SE
Color Temp.: 5600K
Lamp Holder: GZY9.5
Stirrup: Ø16mm (5/8 in.) Socket
Class / IP Rating: 1 / IP 20
Max. Surface Temp.: 170 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 2 m
Min. Distance to Flammable Object: 0.5 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 1.2 kg

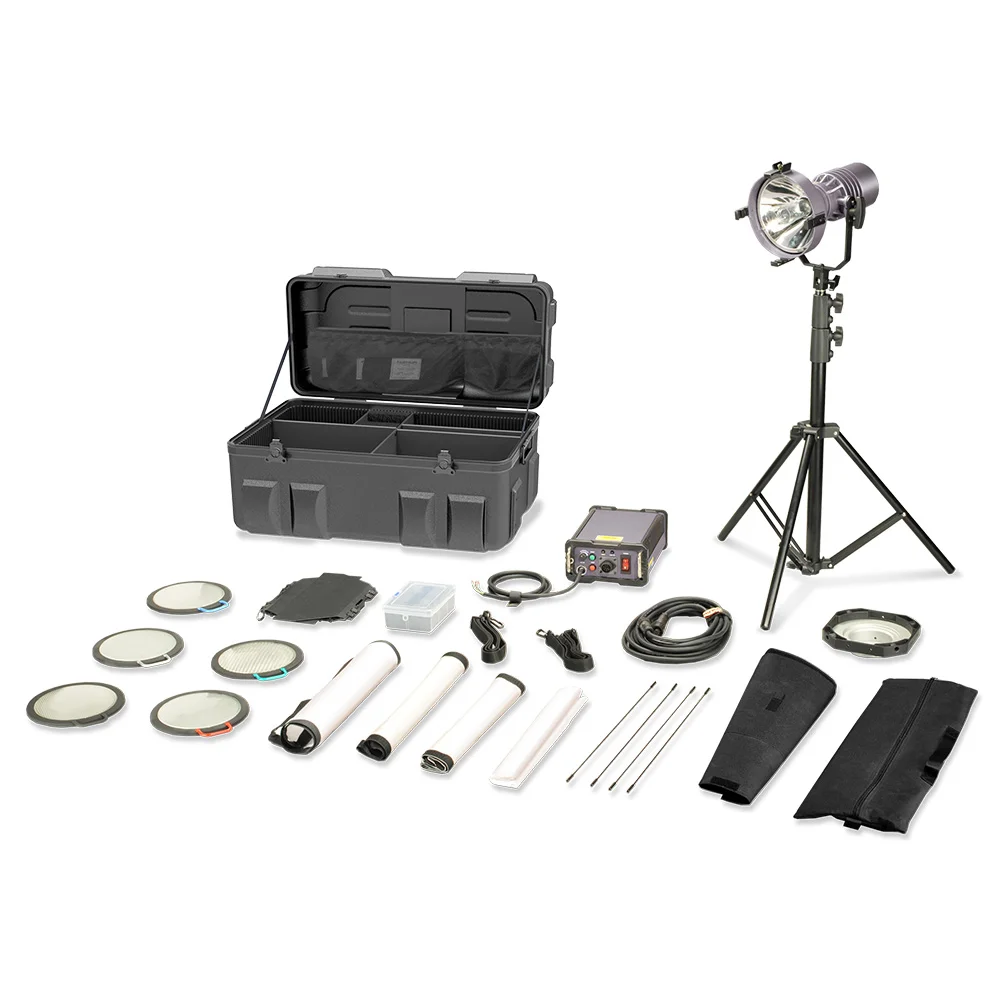

Daylight Boxer
800W Deluxe Kit
Identity No. K10800BX / K1080WBX (AC/DC)
(1) Daylight Boxer 800W Lamphead
(1) 4-leaf Rotatable Barndoor
(1) Lamp Bulb HMI 800W SE with Case
(1) 800W/575W Electronic Ballast or AC/DC EB with DC Power Cable
(1) Lamphead to Ballast Cable 7 m
(1) Set of 5 Par Lenses Ø175mm
(1) Carrying Bag for Par Lenses
(1) Aluminum Light Stand
(1) Set of Softbox with T-ring
(1) Carrying Case 820 x 395 x 370 (mm)
Total Weight : 29.0 kg / 29.2 kg (AC/DC)
Daylight Boxer 800W Standard Kit
Identity No. K00800BX / K0080WBX (AC/DC)
(1) Daylight Boxer 800W Lamphead
(1) 4-leaf Rotatable Barndoor
(1) 800W/575W Electronic Ballast or AC/DC EB
with DC Power Cable(1) Lamphead to Ballast Cable 7 m
(1) Set of 5 Par Lenses Ø175mm
(1) Carrying Bag for Par Lenses
(1) Carrying Case 600 x 465 x 295 (mm)
Total Weight : 23.0 kg / 23.2 kg (AC/DC)
Daylight Boxer 400W
Deluxe Kit
Identity No. K10400BX / K1040WBX (AC/DC)
(1) Daylight Boxer 400W Lamphead
(1) 4-leaf Rotatable Barndoor
(1) Lamp Bulb HMI 400W SE with Case
(1) 400W/200W Electronic Ballast or AC/DC EB
with DC Power Cable(1) Lamphead to Ballast Cable 7 m
(1) Set of 5 Par Lenses Ø130mm
(1) Carrying Bag for Par Lenses
(1) Aluminum Light Stand
(1) Set of Softbox with T-ring
(1) Carrying Case 670 x 520 x 270 (mm)
Total Weight : 20.0 kg / 20.5 kg (AC/DC)
Daylight Boxer 400W Standard Set
Identity No. K00400BX / K0040WBX (AC/DC)
(1) Daylight Boxer 400W Lamphead
(1) 4-leaf Rotatable Barndoor
(1) 400W/200W Electronic Ballast or AC/DC EB
with DC Power Cable(1) Lamphead to Ballast Cable 7 m
(1) Set of 5 Par Lenses Ø130mm
(1) Carrying Bag for Par Lenses
(1) Carrying Case 517 x 397 x 270 (mm)
Total Weight : 14.0 kg / 14.5 kg (AC/DC)
Daylight Boxer
200W Deluxe Kit
Identity No. K10200BX / K1020WBX (AC/DC)
(1) Daylight Boxer 200W Lamphead
(1) 4-leaf Rotatable Barndoor
(1) Lamp Bulb HMI 200W SE with Case
(1) 200W Electronic Ballast or AC/DC EB with DC Power Cable
(1) Lamphead to Ballast Cable 7 m
(1) Set of 5 Par Lenses Ø112mm
(1) Carrying Bag for Par Lenses
(1) Aluminum Light Stand
(1) Set of Softbox with T-ring
(1) Carrying Case 670 x 520 x 270 (mm)
Total Weight : 19.5 kg / 20.0 kg (AC/DC)

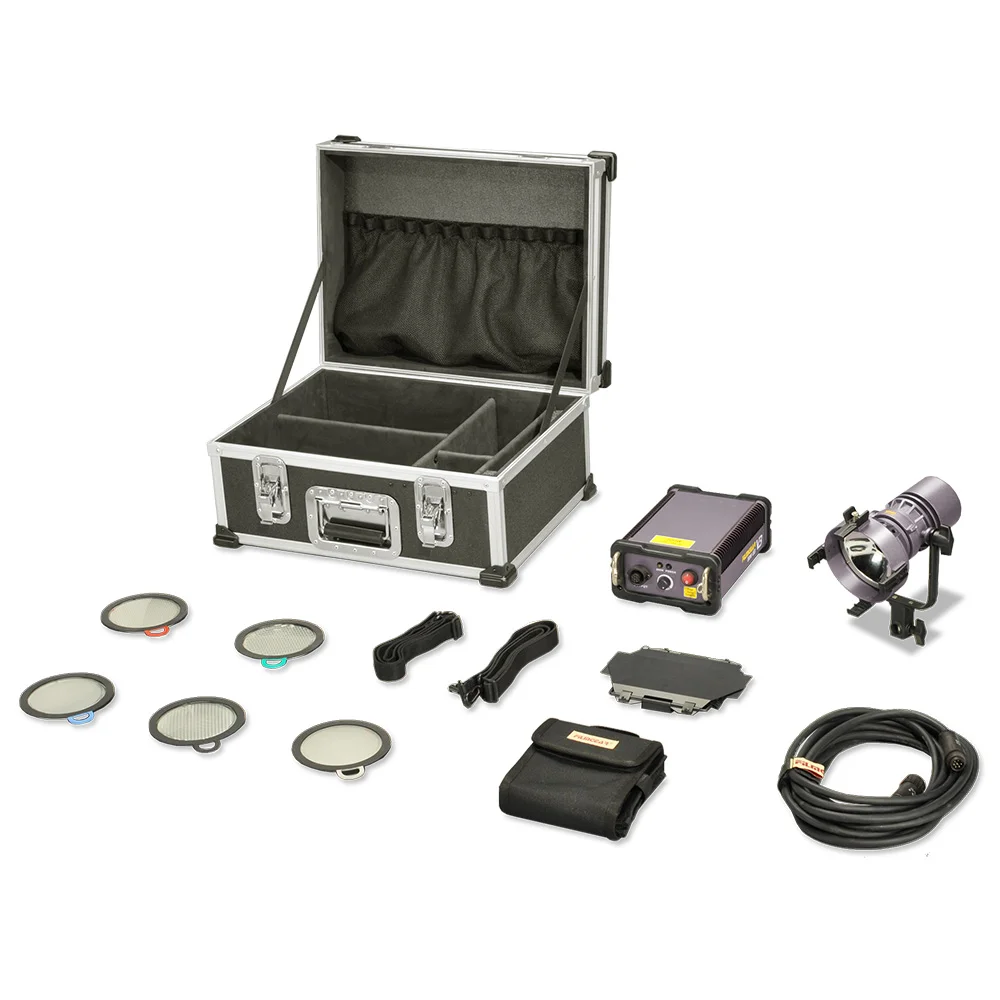

Daylight Boxer
200W Standard Kit
Identity No. K00200BX / K0020WBX (AC/DC)
(1) Daylight Boxer 200W Lamphead
(1) 4-leaf Rotatable Barndoor
(1) 200W Electronic Ballast or AC/DC EB with DC Power Cable
(1) Lamphead to Ballast Cable 7 m
(1) Set of 5 Par Lenses Ø112mm
(1) Carrying Bag for Par Lenses
(1) Carrying Case 517 x 397 x 270 (mm)
Total Weight : 13.5 kg / 14.0 kg (AC/DC)
