Daylight Power Beam 18kW/12kW (36”)
Capacity: 18,000W / 12,000W
Lamp Bulb Voltage: 200V / 160V
UV Protective Lens: Ø883mm
Lamp Type: HMI 18000W/SE or HMI 12000W/SE
Color Temp.: 5600K
Lamp Holder: GX51 / GX38
Stirrup: Ø28mm (1-1/8in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 260°C / 200°C
Max. Ambient Temp.: 45°C
Min. Distance to Illuminated Object: 15m
Min. Distance to Flammable Object: 2m
Operating Range: +30°C ~ 0° ~ -30°
Weight (Lamphead): 92kg
Daylight Power Beam 9kW/6kW (24”)
Capacity: 9,000W / 6,000W
Lamp Bulb Voltage: 160V / 125V
UV Protective Lens: Ø645mm
Lamp Type: CSR 9000W/SE/HR or HMI 9000W/SE or HMI 6000W/SE
Color Temp.: 5600W
Lamp Holder: GX38
Stirrup: Ø28mm (1-1/8in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 220°C
Max. Ambient Temp.: 45°C
Min. Distance to Illuminated Object: 15m
Min. Distance to Flammable Object: 1.5m
Operating Range: +45° ~ 0° ~ -45°
Weight (Lamphead): 55kg
Daylight Power Beam 4kW/2.5kW (24”)
Capacity: 4,000W / 2,500W
Lamp Bulb Voltage: 200V / 115V
UV Protective Lens: Ø645mm
Lamp Type: HMI 4000W/SE or HMI 2500W/SE
Color Temp.: 5600K
Lamp Holder: G38
Stirrup: Ø28mm (1-1/8in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 160°C
Max. Ambient Temp.: 45°C
Min. Distance to Illuminated Object: 10m / 8m
Min. Distance to Flammable Object: 1.2m / 1m
Operating Range: +45° ~ 0° -45°
Weight (Lamphead): 51kg
Daylight Power Beam 1.8kW/1.2kW (18”)
Capacity: 1,800W / 1,200W
Lamp Bulb Voltage: 140V / 100V
UV Protective Lens: Ø500mm
Lamp Type: HMI 1800W/SE or HMI 1200W/SE
Color Temp.: 5600K
Lamp Holder: G38
Stirrup: Ø28mm (1-1/8in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 180°C
Max. Ambient Temp.: 45°C
Min. Distance to Illuminated Object: 6.75m / 5m
Min. Distance to Flammable Object: 1.2m
Operating Range: +45° ~ 0° ~ -45°
Weight (Lamphead): 38kg
Power Beam Hybrid 24kW/20kW+18kW/12kW (36”)
Capacity: 24,000W / 20,000W
18,000W / 12,000W
Lamp Bulb Voltage: Daylight: 225V / 160V
Tungsten: 200-240V AC
Protective Lens: Ø883mm
Lamp Type: Daylight: HMI 18kW SE / 12kW SE
Tungsten: 24kW SE / 20kW SE
Color Temp.: 3200K
5600K
Lamp Holder: GX51/GX38/G38
Stirrup: Ø28mm (1-1/8in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 260°C
Max. Ambient Temp.: 45°C
Min. Distance to Illuminated Object: 22.5m
Min. Distance to Flammable Object: 2.5m
Operating Range: +45° ~ 0° ~ -45°
Weight (Lamphead): 95kg
Power Beam Hybrid 12kW/10kW+9kW/6kW (24”)
Capacity: 12,000W / 10,000W
9,000W / 6,000W
Lamp Bulb Voltage: Daylight: 160V / 125V
Tungsten: 200-240V AC
Protective Lens: Ø645mm
Lamp Type: Daylight: HMI 9kW SE / 6kW SE
Tungsten: 12kW SE / 10kW SE
Color Temp.: 3200K
5600K
Lamp Holder: GX38/G38
Stirrup: Ø28mm (1-1/8in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 220°C
Max. Ambient Temp.: 45°C
Min. Distance to Illuminated Object: 18m
Min. Distance to Flammable Object: 1.5m
Operating Range: +45° ~ 0° ~ -45°
Weight (Lamphead): 57kg
Power Beam Hybrid 5kW/2kW +4kW/2.5kW (18”)
Capacity: 5,000W / 2,000W
4,000W / 2,500W
Lamp Bulb Voltage: Daylight: 200V / 115V
Tungsten: 200-240V AC
Protective Lens: Ø500mm
Lamp Type: Daylight: HMI 4kW SE / 2.5kW SE
Tungsten: 5kW SE / 2kW SE
Color Temp.: 3200K
5600K
Lamp Holder: G38
Stirrup: Ø28mm (1-1/8in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 210°C
Max. Ambient Temp.: 45°C
Min. Distance to Illuminated Object: 15m
Min. Distance to Flammable Object: 1.5m
Operating Range: +45° ~ 0° ~ -45°
Weight (Lamphead): 38kg
Power Beam Hybrid 2kW + 1.8kW/1.2kW (18”)
Capacity: 2,000W
1,800W / 1,200W
Lamp Bulb Voltage: Daylight: 200V / 115V
Tungsten: 200-240V AC
Protective Lens: Ø500mm
Lamp Type: Daylight: HMI 1.8kW SE / 1.2kW SE
Tungsten: 2kW SE
Color Temp.: 3200K
5600K
Lamp Holder: G38
Stirrup: Ø28mm (1-1/8in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 210°C
Max. Ambient Temp.: 45°C
Min. Distance to Illuminated Object: 15m
Min. Distance to Flammable Object: 1.5m
Operating Range: +45° ~ 0° ~ -45°
Weight (Lamphead): 38kg

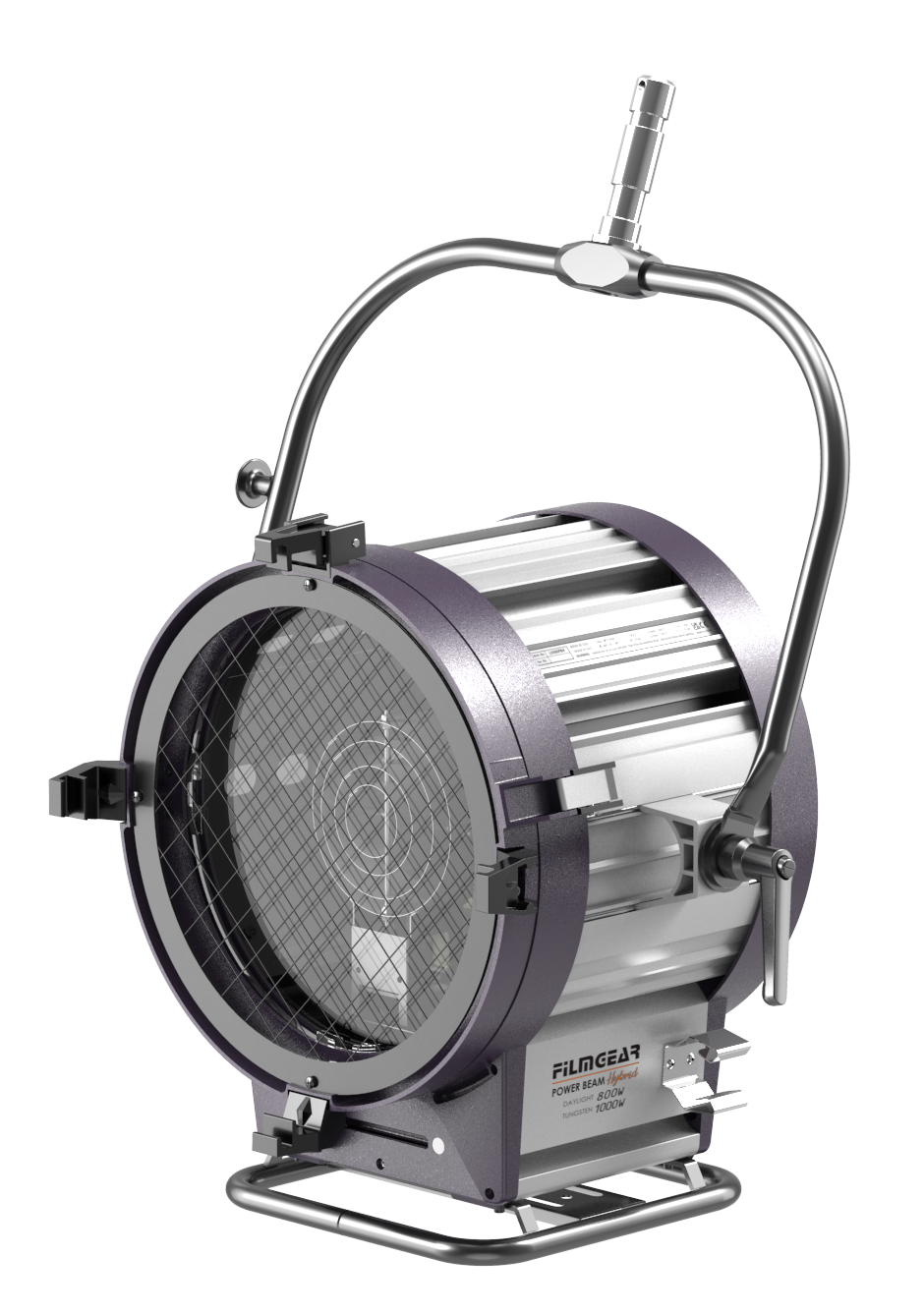

Power Beam Hybrid 1kW + 800W (12”)
Capacity: Daylight: 800W
Tungsten: 1,000W
Lamp Bulb Voltage: Daylight: 95V
Tungsten: 100 - 250V AC
Protective Lens: Ø313mm
Lamp Type: Daylight: 800W SE
Tungsten: 1kW SE
Color Temp.: 3200K
5600K
Lamp Holder: G22
Stirrup: Ø28mm (1-1/8in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 150ºC
Max. Ambient Temp.: 45°C
Min. Distance to Illuminated Object: 3.5m
Min. Distance to Flammable Object: 0.5m
Operating Range: +45° ~ 0° ~ -45°
Weight (Lamphead): 15kg
