Tungsten Fresnel
24kW/20kW Studio
Identity No.: L24020TF
Capacity: 24,000W / 20,000W
Voltage: 200 - 240V AC
Fresnel Lens: Ø625mm (24-5/8 in.)
Lamp Type: 24kW/20kW SE
Color Temp.: 3200K
Lamp Holder: G38
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 240 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 12 m
Min. Distance to Flammable Object: 2.5 m
Operating Range: +30º ~ 0º ~ -30º
Weight (Lamphead): 63.0 kg
Weight (with barndoor): 69.5 kg
Tungsten Fresnel
12kW/10kW Studio
Identity No.: L12010TF
Capacity: 12,000W / 10,000W
Voltage: 200 - 240V AC
Fresnel Lens: Ø450mm (17-3/7 in.)
Lamp Type: 12kW/10kW SE
Color Temp.: 3200K
Lamp Holder: G38
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 220 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 8 m
Min. Distance to Flammable Object: 2 m
Operating Range: +30º ~ 0º ~ -30º
Weight (Lamphead): 34.0 kg
Weight (with barndoor): 38.9 kg
Tungsten Fresnel
5000W Studio
Identity No.: L05000TF (220V) L05000TF1 (110V)
Capacity: 5,000W
Voltage: 200 - 240V AC or 100 - 120V AC
Fresnel Lens: Ø300mm (11-3/4 in.)
Lamp Type: 5000W SE
Color Temp.: 3200K
Lamp Holder: G38
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 210 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 5 m
Min. Distance to Flammable Object: 1.5 m
Operating Range: +38º ~ 0º ~ -38º
Weight (Lamphead): 16.3 kg
Weight (with barndoor): 18.8 kg
Tungsten Fresnel
5000W Junior
Identity No.: L05000TJ (220V) L05000TJ1 (110V)
Capacity: 5,000W
Voltage: 200 - 240V AC or 100 - 120V AC
Fresnel Lens: Ø250mm (9-7/8 in.)
Lamp Type: 5000W SE
Color Temp.: 3200K
Lamp Holder: G38
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 20
Max. Surface Temp.: 220 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 5 m
Min. Distance to Flammable Object: 1.5 m
Operating Range: +38º ~ 0º ~ -38º
Weight (Lamphead): 14.4 kg
Weight (with barndoor): 16.1 kg
Tungsten Fresnel
2000W Studio
Identity No.: L02000TF
Capacity: 2,000W
Voltage: 100 - 250V AC
Fresnel Lens: Ø250mm (9-7/8 in.)
Lamp Type: 2000W SE
Color Temp.: 3200K
Lamp Holder: G38
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 190 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 2 m
Min. Distance to Flammable Object: 1 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 12.2 kg
Weight (with barndoor): 13.9 kg
Tungsten Fresnel
2000W Junior
Identity No.: L02000TJ
Capacity: 2,000W
Voltage: 100 - 250V AC
Fresnel Lens: Ø175mm (6-7/8 in.)
Lamp Type: 2000W SE
Color Temp.: 3200K
Lamp Holder: G38
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 20
Max. Surface Temp.: 220 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 2 m
Min. Distance to Flammable Object: 1 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 8.8 kg
Weight (with barndoor): 9.8 kg
Tungsten Fresnel
1000W Studio
Identity No.: L01000TF
Capacity: 1,000W
Voltage: 100 - 250V AC
Fresnel Lens: Ø175mm (6-7/8 in.)
Lamp Type: 1000W SE
Color Temp.: 3200K
Lamp Holder: G22
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 190 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 1.5 m
Min. Distance to Flammable Object: 0.5 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 6.5 kg
Weight (with barndoor): 7.5 kg
Tungsten Fresnel
1000W Junior
Identity No.: L01000TJ
Capacity: 1,000W
Voltage: 100 - 250V AC
Fresnel Lens: Ø130mm (5-1/8 in.)
Lamp Type: 1000W SE
Color Temp.: 3200K
Lamp Holder: G22
Stirrup: Ø16mm (5/8 in.) Socket
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 220 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 1.5 m
Min. Distance to Flammable Object: 0.5 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 4.3 kg
Weight (with barndoor): 4.9 kg
Tungsten Fresnel
650W Junior
Identity No.: L00650TJ
Capacity: 650W
Voltage: 100 - 250V AC
Fresnel Lens: Ø112mm (4-3/8 in.)
Lamp Type: 650W SE
Color Temp.: 3200K
Lamp Holder: GY9.5
Stirrup: Ø16mm (5/8 in.) Socket
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 190 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 1 m
Min. Distance to Flammable Object: 0.5 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 3.0 kg
Weight (with barndoor): 3.5 kg
Tungsten Fresnel
300W Junior
Identity No.: L00300TJ
Capacity: 300W
Voltage: 100 - 250V AC
Fresnel Lens: Ø80mm (3-1/8 in.)
Lamp Type: 300W SE
Color Temp.: 3200K
Lamp Holder: GY9.5
Stirrup: Ø16mm (5/8 in.) Socket
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 190 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 1 m
Min. Distance to Flammable Object: 0.5 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 1.8 kg
Weight (with barndoor): 2.1 kg

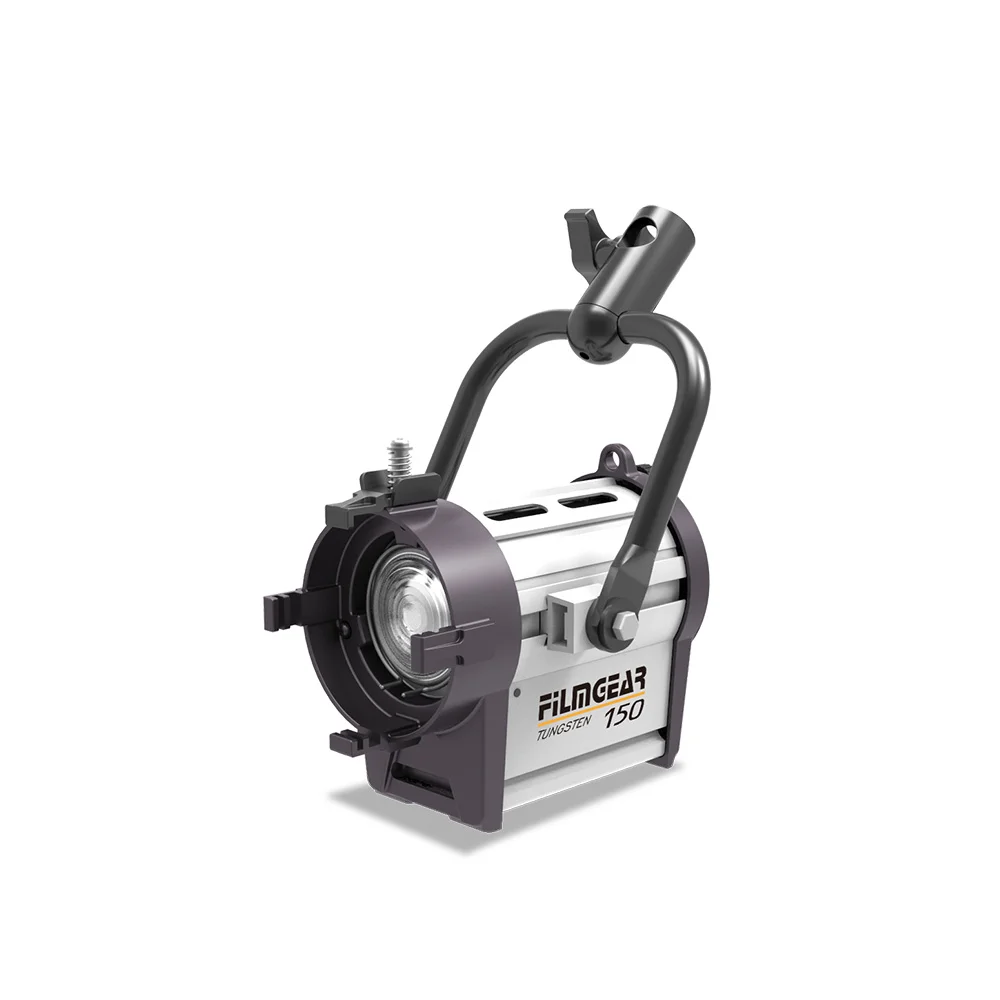

Tungsten Fresnel
150W Junior
Identity No.: L00150TJ
Capacity: 150W
Voltage: 100 - 250V AC
Fresnel Lens: Ø50mm (2 in.)
Lamp Type: 150W SE
Color Temp.: 3200K
Lamp Holder: GX6.35
Stirrup: Ø16mm (5/8 in.) Socket
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 190 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 0.5 m
Min. Distance to Flammable Object: 0.5 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 1.4 kg
Weight (with barndoor): 1.5 kg
Traveler Mini Kit
Identity No.: KTM002TA (220V) / KTM001TA (110V)
(2) Tungsten Fresnel 300W Junior Lamphead
(2) 4-leaf Rotatable Barndoor
(2) Set of 4 Scrims Ø127mm with Bag
(2) Filter Frame
(2) Lamp Bulb 300W 120V or 300W 230V
(2) Aluminum Light Stand
(1) Tungsten Fresnel 150W Junior Lamphead
(1) 4-leaf Rotatable Barndoor
(1) Set of 4 Scrims Ø76mm with Bag
(1) Filter Frame
(1) Lamp Bulb 150W 120V or 150W 230V
(1) Aluminum Light Stand
(1) Scissor Clamp
(1) ABS Case (23” x 17.5” x 11”)
Total Weight : 19.5 kg
