Daylight Fresnel
18kW/12kW DE
Identity No.: L18012DD
Capacity: 18,000W / 12,000W
Lamp Bulb Voltage: 225V / 160V
Fresnel Lens: Ø625mm (24-5/8 in.)
Lamp Type (Double-End): HMI 18000W/DE or HMI 12000W/DE
Color Temp. : 5600K
Lamp Holder: Double-End Spring loaded
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 20
Max. Surface Temp.: 230 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 15 m
Min. Distance to Flammable Object: 2 m
Operating Range: +30º ~ 0º ~ -30º
Weight (Lamphead): 81.0 kg
Weight (with barndoor): 87.8 kg
Daylight Fresnel 12000W SE
Identity No.: L12000DS
Capacity: 12000W
Lamp Bulb Voltage: 160V
Fresnel Lens: Ø500mm (19-5/8 in.)
Lamp Type: MSR 12000HR or HMI 12000W/SE
Color Temp.: 5600K
Lamp Holder: GX38
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 200 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 15 m
Min. Distance to Flammable Object: 2 m
Operating Range: +38º ~ 0º ~ -38º
Weight (Lamphead): 51.0 kg
Weight (with barndoor): 55.5 kg
Daylight Fresnel 9kW/6kW SE
Identity No.: L09060DS
Capacity: 9,000W / 6,000W
Lamp Bulb Voltage: 160V / 125V
Fresnel Lens: Ø450mm (17-3/4 in.)
Lamp Type: CSR 9000/SE/HR or HMI 9000W/SE
MSR 6000/HR or HMI 6000W/SE
Color Temp.: 5600K
Lamp Holder: GX38
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 220 ºC / 200 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 15 m / 12 m
Min. Distance to Flammable Object: 1.5 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 38.7 kg
Weight (with barndoor): 43.7 kg
Daylight Fresnel 6000W SE
Identity No.: L06000DS
Capacity: 6,000W
Lamp Bulb Voltage: 125V
Fresnel Lens: Ø450mm (17-3/4 in.)
Lamp Type: MSR 6000HR or HMI 6000W/SE
Color Temp.: 5600K
Lamp Holder: GX38
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 200 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 12 m
Min. Distance to Flammable Object: 1.5 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 37.6 kg
Weight (with barndoor): 42.6 kg
Daylight Fresnel 4000W SE
Identity No.: L04000DS
Capacity: 4,000W
Lamp Bulb Voltage: 200V
Fresnel Lens: Ø300mm (11-3/4 in.)
Lamp Type: MSR 4000HR or HMI 4000W/SE
Color Temp.: 5600K
Lamp Holder: G38
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 170 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 10 m
Min. Distance to Flammable Object: 1.2 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 21.8 kg
Weight (with barndoor): 24.3 kg
Daylight Fresnel
4kW/2.5kW SE
Identity No.: L04025DS
Capacity: 4,000W / 2,500W
Lamp Bulb Voltage: 200V / 115V
Fresnel Lens: Ø300mm (11-3/4 in.)
Lamp Type:
MSR 4000HR or HMI 4000W/SE
MSR 2500/HR or HMI 2500W/SE
Color Temp.: 5600K
Lamp Holder: G38
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 160 ºC / 150 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 10 m / 8 m
Min. Distance to Flammable Object: 1.2 m / 1 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 22.6 kg
Weight (with barndoor): 25.1 kg

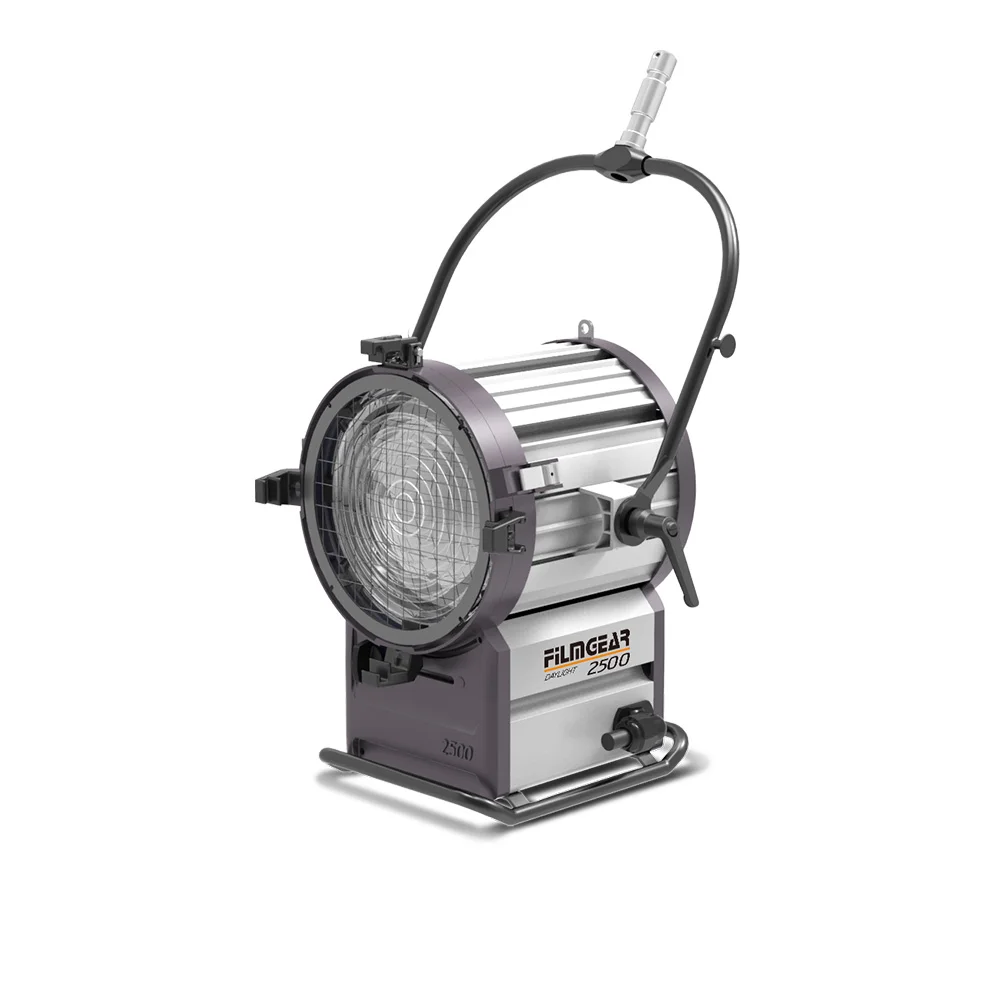

Daylight Fresnel 2500W SE
Identity No.: L02500DS
Capacity: 2500W
Lamp Bulb Voltage: 115V
Fresnel Lens: Ø250mm (9-7/8 in.)
Lamp Type: MSR 2500HR or HMI 2500W/SE
Color Temp.: 5600K
Lamp Holder: G38
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 160 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 8 m
Min. Distance to Flammable Object: 1 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 17.1 kg
Weight (with barndoor): 18.8 kg
Daylight Fresnel
1.8kW/1.2kW SE
Identity No.: L01812DS
Capacity: 1,800W / 1,200W
Lamp Bulb Voltage: 140V / 100V
Fresnel Lens: Ø175mm (6-7/8 in.)
Lamp Type:
CSR 1800/SE/HR or HMI 1800W/SE
MSR 1200/HR or HMI 1200W/SE
Color Temp.: 5600K
Lamp Holder: G38
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 180 ºC / 170 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 6 m
Min. Distance to Flammable Object: 0.5 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 9.7 kg
Weight (with barndoor): 10.7 kg
Daylight Fresnel 1200W SE
Identity No.: L01200DS
Capacity: 1,200W
Lamp Bulb Voltage: 100V
Fresnel Lens: Ø175mm (6-7/8 in.)
Lamp Type: MSR 1200HR or HMI 1200W/SE
Color Temp.: 5600K
Lamp Holder: G38
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 180 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 6 m
Min. Distance to Flammable Object: 0.5 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 9.7 kg
Weight (with barndoor): 10.7 kg
Daylight Fresnel 575W SE
Identity No.: L00575DS
Capacity: 575W
Lamp Bulb Voltage: 95V
Fresnel Lens: Ø130mm (5-1/8 in.)
Lamp Type: HMI 575W/SE
Color Temp.: 5600K
Lamp Holder: G22
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 160 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 5 m
Min. Distance to Flammable Object: 0.5 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 6.4 kg
Weight (with barndoor): 7.0 kg
Daylight Fresnel 200W SE
Identity No.: L00200DS
Capacity: 200W
Lamp Bulb Voltage: 70V
Fresnel Lens: Ø112mm (4-3/8 in.)
Lamp Type: HMI 200W/SE
Color Temp.: 5600K
Lamp Holder: GZY9.5
Stirrup: Ø16mm (5/8 in.) Socket
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 190 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 2 m
Min. Distance to Flammable Object: 0.5 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 3.6 kg
Weight (with barndoor): 4.1 kg
200W Daylight Fresnel Kit
Identity No. K0022MDS / K0022WDS (AC/DC)
(1) Daylight Fresnel 200W Lamphead
(1) 4-leaf Rotatable Barndoor
(1) 200W Electronic Ballast or AC/DC EB with DC Power Cable
(1) Lamphead to Ballast Cable 7 m
(1) Set of 4 Scrims Ø168mm
(1) Carrying Bag for Scrim Set
(1) ABS Case (20.5” x 16” x 11”)
Total Weight : 17.1 kg / 17.6 kg (AC/DC)
