Flo-Box 4 Bank 4 ft

Identity No.: L04048FB
Capacity: 300W (75W x 4)
Voltage: 95 - 265V AC
Color Temp.: 5600K / 3200K
Tube Type: T12 - 48 in. (1200mm)
Lamp Holder: G13
Mounting: Mounting Bracket
Class: 1
Max. Surface Temp.: 70 ºC
Max. Ambient Temp.: 50 ºC
Weight (Lamphead with Tubes): 4.7 kg

Flo-Box 4 Bank 4 ft

Identity No.: L04024FB
Capacity: 160W (40W x 4)
Voltage: 95 - 265V AC
Color Temp.: 5600K / 3200K
Tube Type: T12 - 24 in. (590mm)
Lamp Holder: G13
Mounting: Mounting Bracket
Class: 1
Max. Surface Temp.: 70 ºC
Max. Ambient Temp.: 50 ºC
Weight (Lamphead with Tubes): 3.4 kg

Flo-Box 2 Bank 8 ft

Identity No.: L02096FB
Capacity: 240W (120W x 2)
Voltage: 95 - 265V AC
Color Temp.: 5600K / 3200K
Tube Type: T12 - 96 in. (2465mm)
Lamp Holder: G13
Mounting: Mounting Bracket
Class: 1
Max. Surface Temp.: 70 ºC
Max. Ambient Temp.: 50 ºC
Weight (Lamphead with Tubes): 4.2 kg

Flo-Box 2 Bank 6 ft

Identity No.: L02072FB
Capacity: 200W (100W x 2)
Voltage: 95 - 265V AC
Color Temp.: 5600K / 3200K
Tube Type: T12 - 72 in. (1865mm)
Lamp Holder: G13
Mounting: Mounting Bracket
Class: 1
Max. Surface Temp.: 70 ºC
Max. Ambient Temp.: 50 ºC
Weight (Lamphead with Tubes): 3.5 kg

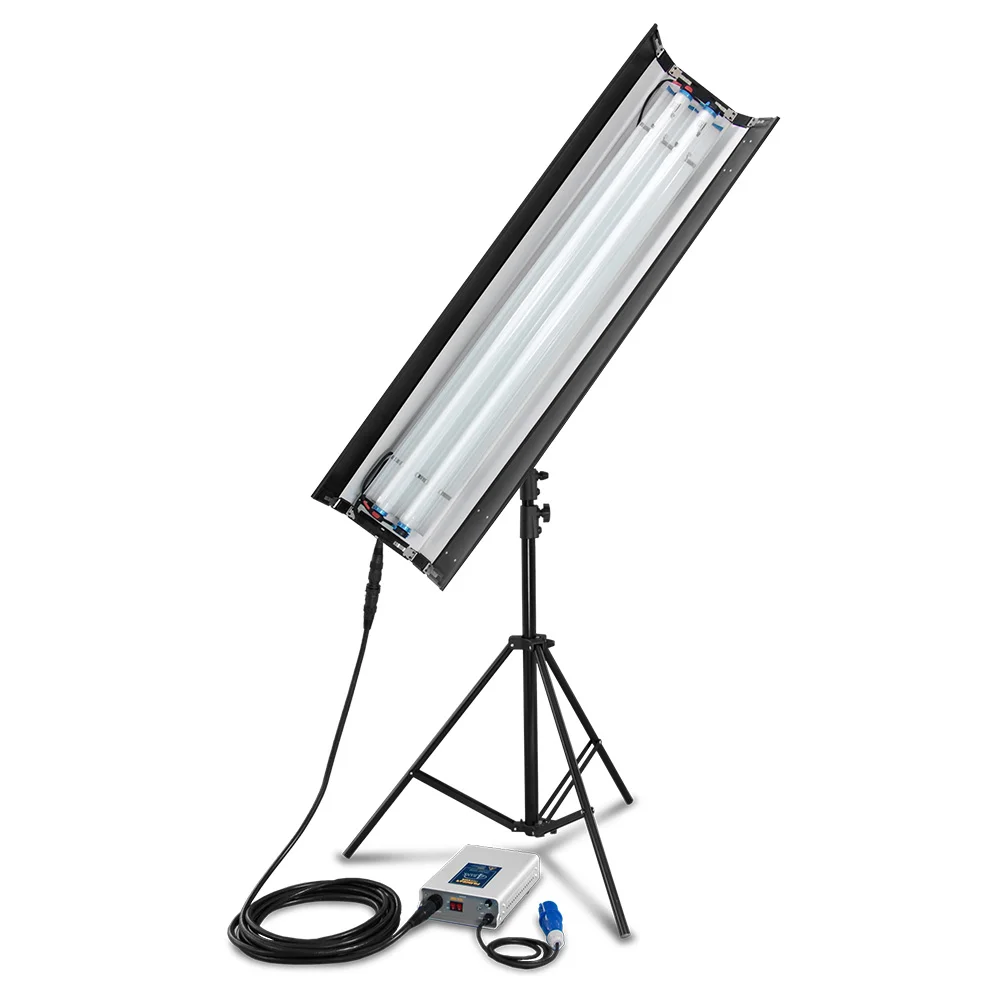

Flo-Box 2 Bank 4 ft

Identity No.: L02048FB
Capacity: 150W (75W x 2)
Voltage: 95 - 265V AC
Color Temp.: 5600K / 3200K
Tube Type: T12 - 48 in. (1200mm)
Lamp Holder: G13
Mounting: Mounting Bracket
Class: 1
Max. Surface Temp.: 70 ºC
Max. Ambient Temp.: 50 ºC
Weight (Lamphead with Tubes): 3.4 kg

Flo-Box 2 Bank 2 ft

Identity No.: L02024FB
Capacity: 80W (40W x 2)
Voltage: 95 - 265V AC
Color Temp.: 5600K / 3200K
Tube Type: T12 - 24 in. (590mm)
Lamp Holder: G13
Mounting: Mounting Bracket
Class: 1
Max. Surface Temp.: 70 ºC
Max. Ambient Temp.: 50 ºC
Weight (Lamphead with Tubes): 2.5 kg

Mono-Flo 8ft

Identity No. : X11096FM (without Flo Tube)

• (1) Mounting Bracket with Ø16mm (5/8 in.) Socket
• (1) Ø16mm to Ø12mm Adapter
• (1) Lamp Connectors Cable
• (1) Mono-Flo Ballast 8ft / 6ft
• (1) Lamphead to Mono-Flo Ballast Cable

Identity No. :  X01096FM (with Flo Tube)

• (1) T12 Tube 8ft
• (1) Mounting Bracket with Ø16mm (5/8 in.) Socket
• (1) Ø16mm to Ø12mm Adapter
• (1) Lamp Connectors Cable
• (1) Mono-Flo Ballast 8ft / 6ft
• (1) Lamphead to Mono-Flo Ballast Cable

Mono-Flo 6ft

Identity No. : X11072FM (without Flo Tube)

• (1) Mounting Bracket with Ø16mm (5/8 in.) Socket
• (1) Ø16mm to Ø12mm Adapter
• (1) Lamp Connectors Cable
• (1) Mono-Flo Ballast 8ft / 6ft
• (1) Lamphead to Mono-Flo Ballast Cable

Identity No. : X01072FM (with Flo Tube)

• (1) T12 Tube 6ft
• (1) Mounting Bracket with Ø16mm (5/8 in.) Socket
• (1) Ø16mm to Ø12mm Adapter
• (1) Lamp Connectors Cable
• (1) Mono-Flo Ballast 8ft / 6ft
• (1) Lamphead to Mono-Flo Ballast Cable

Mono-Flo 2ft

Identity No. :   X11024FM (without Flo Tube)

• (1) Mounting Bracket with Ø16mm (5/8 in.) Socket
• (1) Ø16mm to Ø12mm Adapter
• (1) Lamp Connectors Cable
• (1) Mono-Flo Ballast 4ft / 2ft
• (1) Lamphead to Mono-Flo Ballast Cable
•

Identity No. :  X01024FM (with Flo Tube)

• (1) T12 Tube 2ft
• (1) Mounting Bracket with Ø16mm (5/8 in.) Socket
• (1) Ø16mm to Ø12mm Adapter
• (1) Lamp Connectors Cable
• (1) Mono-Flo Ballast 4ft / 2ft
• (1) Lamphead to Mono-Flo Ballast Cable

Mono-Flo 4ft

Identity No. :   X11048FM (without Flo Tube)

• (1) Mounting Bracket with Ø16mm (5/8 in.) Socket
• (1) Ø16mm to Ø12mm Adapter
• (1) Lamp Connectors Cable
• (1) Mono-Flo Ballast 4ft / 2ft
• (1) Lamphead to Mono-Flo Ballast Cable

Identity No. :  X01048FM (with Flo Tube)

• (1) T12 Tube 4ft
• (1) Mounting Bracket with Ø16mm (5/8 in.) Socket
• (1) Ø16mm to Ø12mm Adapter
• (1) Lamp Connectors Cable
• (1) Mono-Flo Ballast 4ft / 2ft
• (1) Lamphead to Mono-Flo Ballast Cable

Flo-Box 4 Bank 4 ft Twin Kit

Identity No.: K04048FB / KD4048FB (AC/DC)

• (2) Flo-Box 4 bank 4 ft Lamphead
• (2) 4 Bank Flo Electronic Ballast or AC/DC EB with DC Power Cable
• (2) Extension Cable 7.6m
• (2) Eggcrate
• (2) Mounting Bracket
• (1) ABS Case with Wheels (55” x 13” x 17”)

Total Weight : 40.0 kg

Flo-Box 4 Bank 2 ft Twin Kit

Identity No.: K04024FB / KD4024FB (AC/DC)

• (2) Flo-Box 4 bank 2 ft Lamphead
• (2) 4 Bank Flo Electronic Ballast or AC/DC EB with DC Power Cable
• (2) Extension Cable 7.6m
• (2) Eggcrate
• (2) Mounting Bracket
• (1) ABS Case with Wheels (31” x 14.5” x 17”)

Total Weight : 32.0 kg

U-Flo 6

Identity No.:
L06000UF (M.O.)
L060D0UF (M.O. / DMX)
L0600PUF (P.O.)
L060DPUF (P.O. / DMX)

Capacity: 330W (55W x 6)
Input Voltage: 190V - 250V
Frequency: 50Hz - 60Hz
Input Current: 1.5A @220V
Tube Type: 55W 21” CFL
Color Temp: 5600K / 3200K
Lamp Holder: 2G11
M.O. / P.O. Stirrup: Ø28mm (1-1/8 in.) Spigot
Class: 1
Power Factor: 0.99
Efficiency: 92%
Dimming Control: 1% - 100%
Fusing: 5A
Max. Ambient Temp.: 50ºC
Operation Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 11.7 kg (M.O.) 13.8 kg (P.O.)

U-Flo 4

Identity No.:
L04000UF (M.O.)
L040D0UF (M.O. / DMX)
L0400PUF (P.O.)
L040DPUF (P.O. / DMX)

Capacity: 220W (55W x 4)
Input Voltage: 190V - 250V
Frequency: 50Hz - 60Hz
Input Current: 1.0A @220V
Tube Type: 55W 21” CFL
Color Temp: 5600K / 3200K
Lamp Holder: 2G11
M.O. / P.O. Stirrup: Ø28mm (1-1/8 in.) Spigot
Class: 1
Power Factor: 0.99
Efficiency: 92%
Dimming Control: 1% - 100%
Fusing: 5A
Max. Ambient Temp.: 50ºC
Operation Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 9.2 kg (M.O.) 11.0 kg (P.O.)

U-Flo 2

Identity No.:
L02000UF (M.O.)
L020D0UF (M.O. / DMX)
L0200PUF (P.O.)
L020DPUF (P.O. / DMX)

Capacity: 110W (55W x 2)
Input Voltage: 190V - 250V
Frequency: 50Hz - 60Hz
Input Current: 0.5A @220V
Tube Type: 55W 21” CFL
Color Temp: 5600K / 3200K
Lamp Holder: 2G11
M.O. / P.O. Stirrup: Ø28mm (1-1/8 in.) Spigot
Class: 1
Power Factor: 0.99
Efficiency: 92%
Dimming Control: 1% - 100%
Fusing: 3A
Max. Ambient Temp.: 50ºC
Operation Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 5.5 kg (M.O.) 7.2 kg (P.O.)

U-Flo 4+4

Identity No.:
L04400UF (M.O.)
L044D0UF (M.O. / DMX)
L0440PUF (P.O.)
L044DPUF (P.O. / DMX)

Capacity: 440W (55W x 8)
Input Voltage: 190V - 250V
Frequency: 50Hz - 60Hz
Input Current: 2.2A @220V
Tube Type: 55W 21” CFL
Color Temp: 5600K / 3200K
Lamp Holder: 2G11
M.O. / P.O. Stirrup: Ø28mm (1-1/8 in.) Spigot
Class: 1
Power Factor: 0.99
Efficiency: 92%
Dimming Control: 1% - 100%
Fusing: 8A
Max. Ambient Temp.: 50ºC
Operation Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 14.8 kg (M.O.) 16.7 kg (P.O.)

U-Flo 3+3

Identity No.:
L03300UF (M.O.)
L033D0UF (M.O. / DMX)
L0330PUF (P.O.)
L033DPUF (P.O. / DMX)

Capacity: 330W (55W x 6)
Input Voltage: 190V - 250V
Frequency: 50Hz - 60Hz
Input Current: 1.5A @220V
Tube Type: 55W 21” CFL
Color Temp: 5600K / 3200K
Lamp Holder: 2G11
M.O. / P.O. Stirrup: Ø28mm (1-1/8 in.) Spigot
Class: 1
Power Factor: 0.99
Efficiency: 92%
Dimming Control: 1% - 100%
Fusing: 5A
Max. Ambient Temp.: 50ºC
Operation Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 11.8 kg (M.O.) 14.0 kg (P.O.)

U-Flo 2+2

Identity No.:
L02200UF (M.O.)
L022D0UF (M.O. / DMX)
L0220PUF (P.O.)
L022DPUF (P.O. / DMX)

Capacity: 220W (55W x 4)
Input Voltage: 190V - 250V
Frequency: 50Hz - 60Hz
Input Current: 1.0A @220V
Tube Type: 55W 21” CFL
Color Temp: 5600K / 3200K
Lamp Holder: 2G11
M.O. / P.O. Stirrup: Ø28mm (1-1/8 in.) Spigot
Class: 1
Power Factor: 0.99
Efficiency: 92%
Dimming Control: 1% - 100%
Fusing: 5A
Max. Ambient Temp.: 50ºC
Operation Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 9.3 kg (M.O.) 11.2 kg (P.O)
