Power LED 360W

Identity No. L0036DPL (Daylight), L0036TPL (Tungsten), L0036BPL ( Bi-Color) Capacity: 360W Voltage: 95 - 265V AC; 22 - 36V DC Frequency: 50Hz / 60Hz Current: 3.8 - 1.4A @95 - 265V AC, 12A @30V DC Color Temp: 5600K / 3200K / 2700K-6000K CRI: >90 Dimming: 0 - 100% Control Signal: DMX 512 DMX Channel: 1 LED Life: Approx. 30,000 Hrs M.O. / P.O. Stirrup: Ø28mm (1-1/8 in.) Spigot Class / IP Rating: 1 / IP 20 Max. Surface Temp: 70°C Max. Ambient Temp: 45°C Operation Range: +90° ~ 0º ~ -90° Weight (Lamphead): 16.0 kg (M.O.), 17.4 kg (P.O.)

Power LED 240W

Identity No. L0024DPL (Daylight), L0024TPL (M.O. / Tungsten), L0024BPL (M.O. / Bi-Color)
Capacity: 240W
Voltage: 95 - 265V AC, 22 - 36V DC
Frequency: 50Hz / 60Hz
Input Current: 2.6 - 1.0A @95 - 265V AC, 8A @30V DC
Color Temp: 5600K / 3200K / 2700K-6000K
CRI: >90
Dimming Range: 0 - 100%
Control Signal: DMX 512
DMX Channel: 1
LED Life: Approx. 30,000 Hrs
M.O. / P.O. Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 20
Max. Surface Temp: 70 ºC
Max. Ambient Temp: 45 ºC
Operation Range: +90° ~ 0º ~ -90°
Weight (Lamphead): 12.0 kg (M.O.), 13.4 kg (P.O.)



Power LED 160W

Identity No. L0016DPL (Daylight), L0016TPL (Tungsten)
Capacity: 160W
Voltage: 95 - 265V AC, 22 - 36V DC
Frequency: 50Hz / 60Hz
Current: 1.7 - 0.6A @95 - 265V AC, 5.5A @30V DC
Color Temp: 5600K / 3200K
CRI: >90
Dimming Range: 0 - 100%
Control Signal: DMX 512
DMX Channel: 1
LED Life: Approx. 30,000 Hrs
M.O. / P.O. Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 20
Max. Surface Temp: 70°C
Max. Ambient Temp: 45°C
Operation Range: +90° ~ 0º ~ -90°
Weight (Lamphead): 7.5 kg (M.O.), 8.9 kg (P.O.)

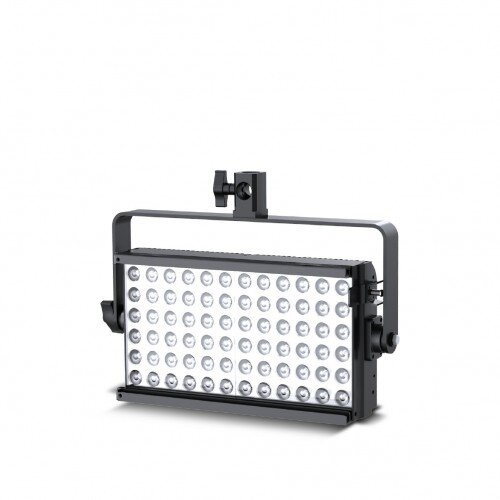

Power LED 80W

Identity No.: L00D8DPL (Daylight) L00D8TPL (Tungsten)
Capacity: 80W
Input Voltage: 22 - 36V DC
Input Current: 2.6A @30V DC
Color Temp: 5600K / 3200K
CRI: >90
Dimming Range: 0-100%
Control Signal: DMX 512
DMX Channel: 1
LED Life: Approx. 30,000 Hrs
Stirrup: Ø16mm (5/8 in.) Socket
Class / IP Rating: 1 / IP 20
Max Surface Temp.: 70 ºC
Max Ambient Temp.: 45 ºC
Operation Range: +90° ~ 0º ~ -90°
Weight (Lamphead): 3.5 kg



Power LED 40W

Identity No.: L00D4DPL (Daylight) L00D4TPL (Tungsten)
Capacity: 40W
Voltage: 22 - 36V DC
Input Current: 1.3A @30V DC
Color Temp: 5600K / 3200K
CRI: >90
Dimming Range: 0 - 100%
Control Signal: DMX 512
DMX Channel: 1
LED Life: Approx. 30,000 Hrs
Stirrup: Ø16mm (5/8 in.) Socket
Class / IP Rating: 1 / IP 20
Max Surface Temp.: 70 ºC
Max Ambient Temp: 45 ºC
Operation Range: +90° ~ 0º ~ -90°
Weight (Lamphead): 2.5 kg
